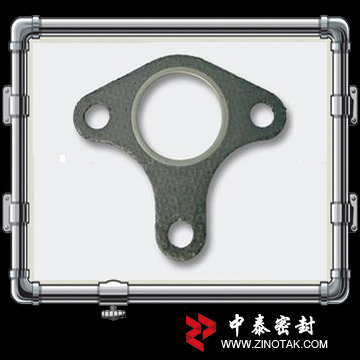

Muffler Gaskets
ZT-S201G is cut from ZT-S201. It is suitable to kinds of the muffler gasket and cylinder heads gasket.
The product has excellent performance in dilatability, sealing equality and long life etc., Mainly applied
in automobile farming machine, motorcycle and engineering etc., it is also can be used in high strength
gaskets and cylinder gaskets etc.
Parameter:
|
I Item |
Style |
|
Reinforced Asbestos Sheet With Tanged Metal |
ZT-S201 |
|
Density g/cm3 |
1.30~1.50 |
|
Tensile strength ≥Mpa |
12.7 |
|
Compressibility ≥% |
10±5 |
|
Recovery ≥% |
40 |
|
Sealing performance |
<0.5cm3/min |
|
Performance of heat-resistance |
150-300°C |
Normal colour: Black, Gray, Graphite etc.
Available with SS304. wire mesh insertion
Also available with anti-stick silicon resin or graphite coating
Dimensions: it is made according the drawing orsamples.
Thickness: 1.0~3.0mm
